Mesa/Boogie Subway D-800 Plus

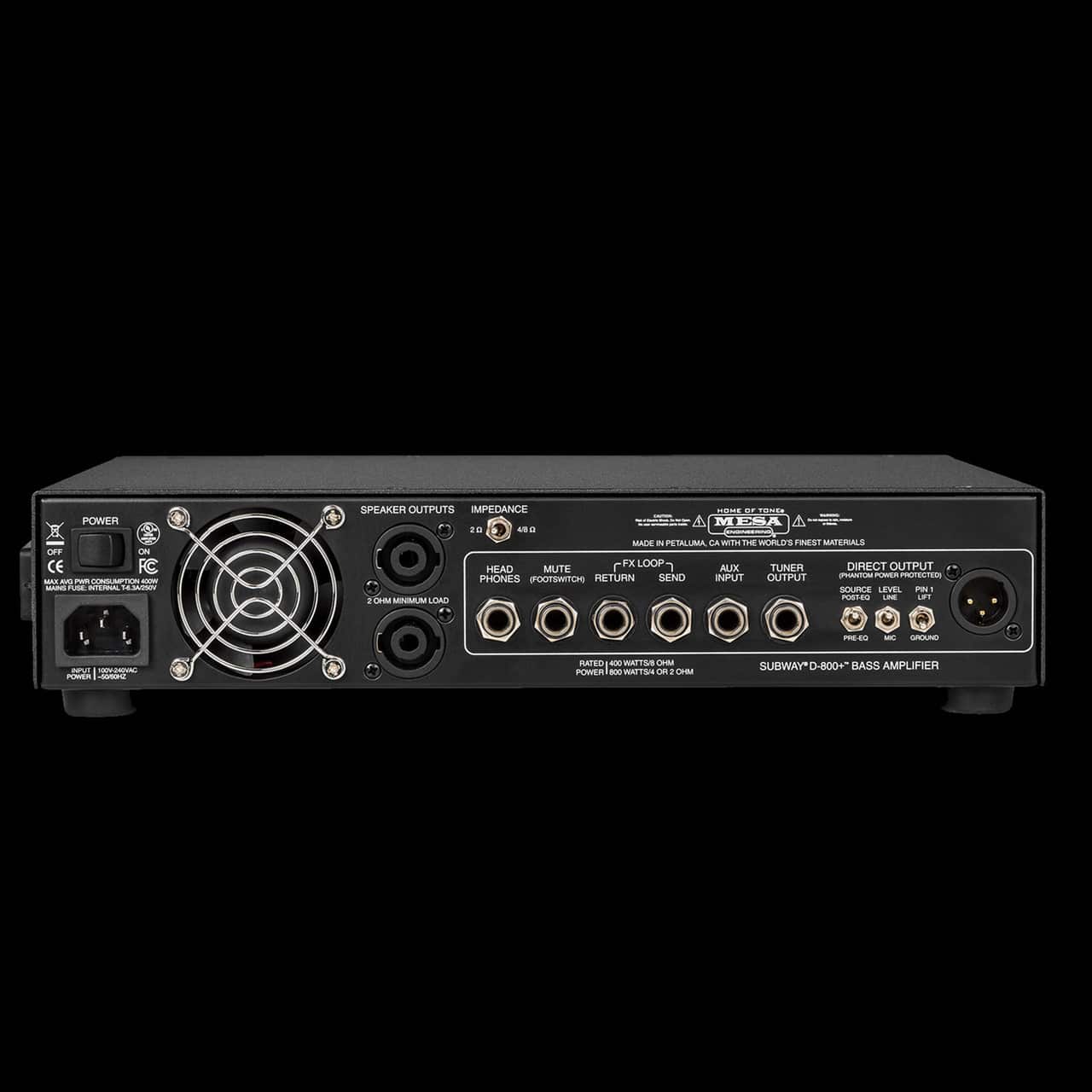

The SUBWAY® D-800+™ addresses the player who wants enhanced frequency control and an interface for outboard signal processing. The upscale D-800+ preamp features expand upon the acclaimed D-800 by including a comprehensive EQ section with Semi-Parametric sweep-able LOW and HIGH MID Bands, the addition of a BRIGHT switch, an adjustable HIGH-PASS Filter with control from 30Hz to 150 Hz, and on the Rear Panel, a Series Effects Loop, Tuner Output and 1/4” MUTE footswitch jack.
|
Wattage: |
|
800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms |
|
Power Amp Type: |
|
Light-Weight Class D Power Amp & 8/4 or 2 Ohm Impedance Switch |
|
Preamp: |
|
Solid-State Preamp |
|
EQ / Dynamics Control: |
|
Variable High-Pass Filter (30Hz – 150Hz), Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls with Deep Switch (for enhanced low-end) & Bright Switch (for enhanced top-end) |
|
Footswitchable Functions: |
|
External Switching Jack for Mute (Footswitch Sold Separately) |
|
Dimensions: |
|
2.625″ H x 13.25″ W x 10.15″ D |
|
Available Formats: |
|
(Metal) Head |
