Pictures Are of Actual Cabinet Simulator!
Cab Clone IR
Your Tube Amp. 16 Legendary IR Cabinet Simulations. Direct to Studio, Stage or Headphones…All in One Compact Box
There’s no substitute for your favorite MESA®, or really any, tube amplifier paired with your favorite cab in a magical sounding room or favorite environment. We also know the challenges and potential costs of capturing great tone and recreating that tone from venue to venue for those recording or in a live stage environment.
Adding to the challenge, many of us prefer a variety of sounds–yet collecting multiple cabs, gear and gaining access to acoustic spaces can be a challenge both logistically and financially. Sometimes we just need the convenience of going direct for recording or even live without cabs and the need to mic up, and without those placement challenges and the inevitable bleed issues associated with ensembles in either of those situations.
Your ultimate solution Tone Tool is here now and it’s all MESA in quality and sound. The CabClone™ IR Cabinet Simulator/IR Reader is ready to give you virtually limitless options, true portability, flexible control and tonal consistency from venue to venue with its wide array of popular MESA cabinets captured by a pro engineer with iconic mics in a state of the art studio, all from your pedalboard or in your gig bag. Go direct to interface or console for recording or playing live, or straight to headphones for silent practice with the new CabClone IR!
|
Made in Petaluma, California with the World’s Finest Materials |
|
Dynamic new Reactive Load circuit provides the feel and tone of a real Speaker/Cabinet |
|
Rated for Amps up to 150-Watts (Reactive Load activates automatically when no cable connected “TO SPKR” Output) |
|
2-Bank A/B Switch with 8-Position “Cab Select” provides instant access to 16 IR Cabinet Preset Locations |
|
New Presence Control provides quick, easy and effective fine-tuning of any selected Cabinet IR |
|

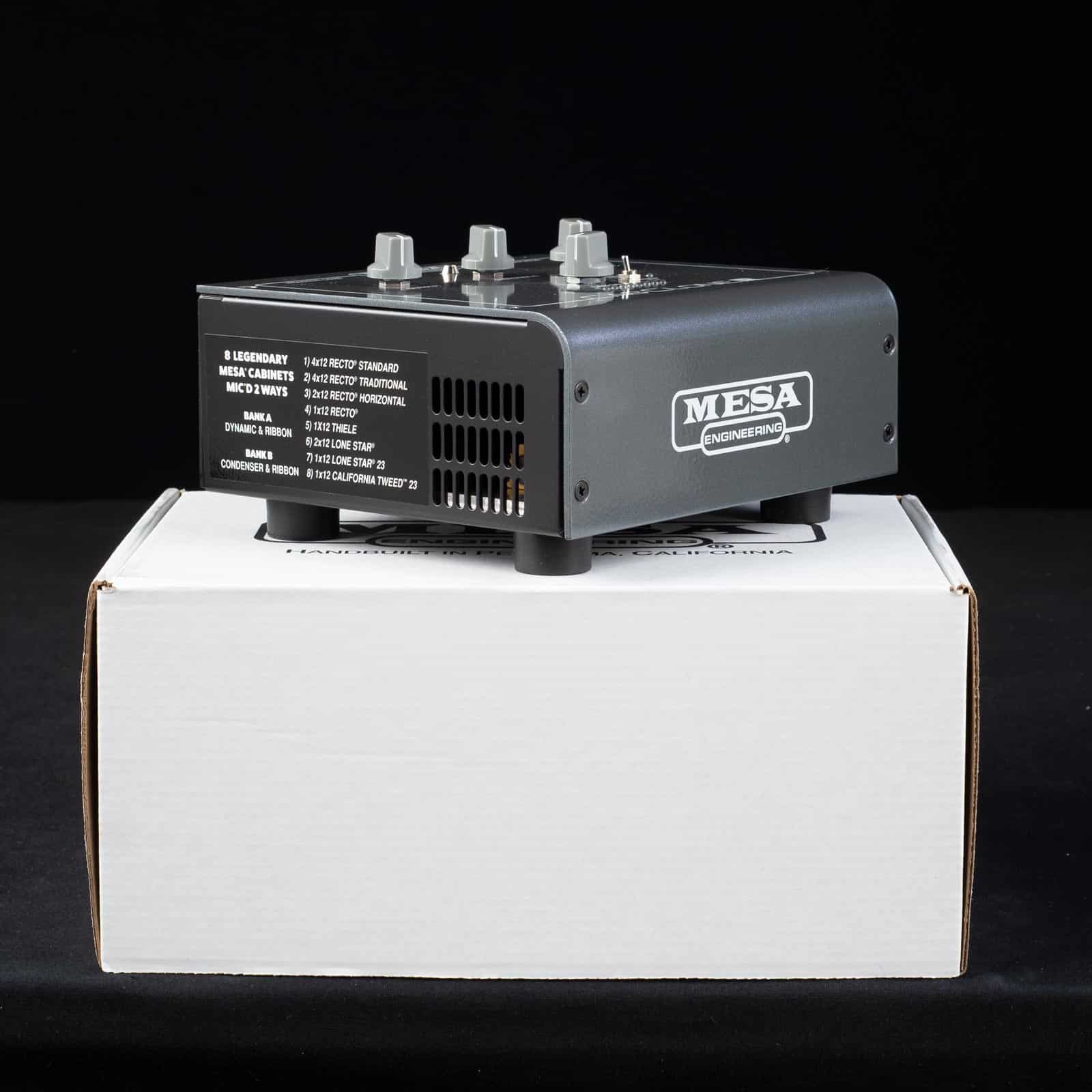

Comes Preloaded with the following 8 Authentic MESA Cabinet IRs, each mic’d two ways; |
|
BANK A = LIVE (Dynamic & Ribbon) / BANK B = STUDIO (Condenser & Ribbon) |
|
Preset 1 = 4×12 Rectifier Standard (closed back) |
|
Preset 2 = 4×12 Rectifier Traditional (closed back) |
|
Preset 3 = 2×12 Rectifier Horizontal (closed back) |
|
Preset 4 = 1×12 Rectifier (closed back) |
|
Preset 5 = 1×12 Thiele (closed back, front ported) |
|
Preset 6 = 2×12 Lone Star (open back) |
|
Preset 7 = 1×12 Lone Star 23 (open back) |
|
Preset 8 = 1×12 California Tweed 23 (open back) |
|
Open System, Third-Party IR Compatibility allows open access to download, store and use your favorite IRs of choice. USB 2.0 A to B connection cable (not included) is required for managing IR file directory. |
|
Extra “Cabinet Library” Space for storing additional IR favorites, beyond the 16 factory-loaded Presets, for native access via any USB computer connection |
|
MIDI IN & THRU provides class-leading control and instant access to switch IRs on the fly to best match your amps voicings |
|

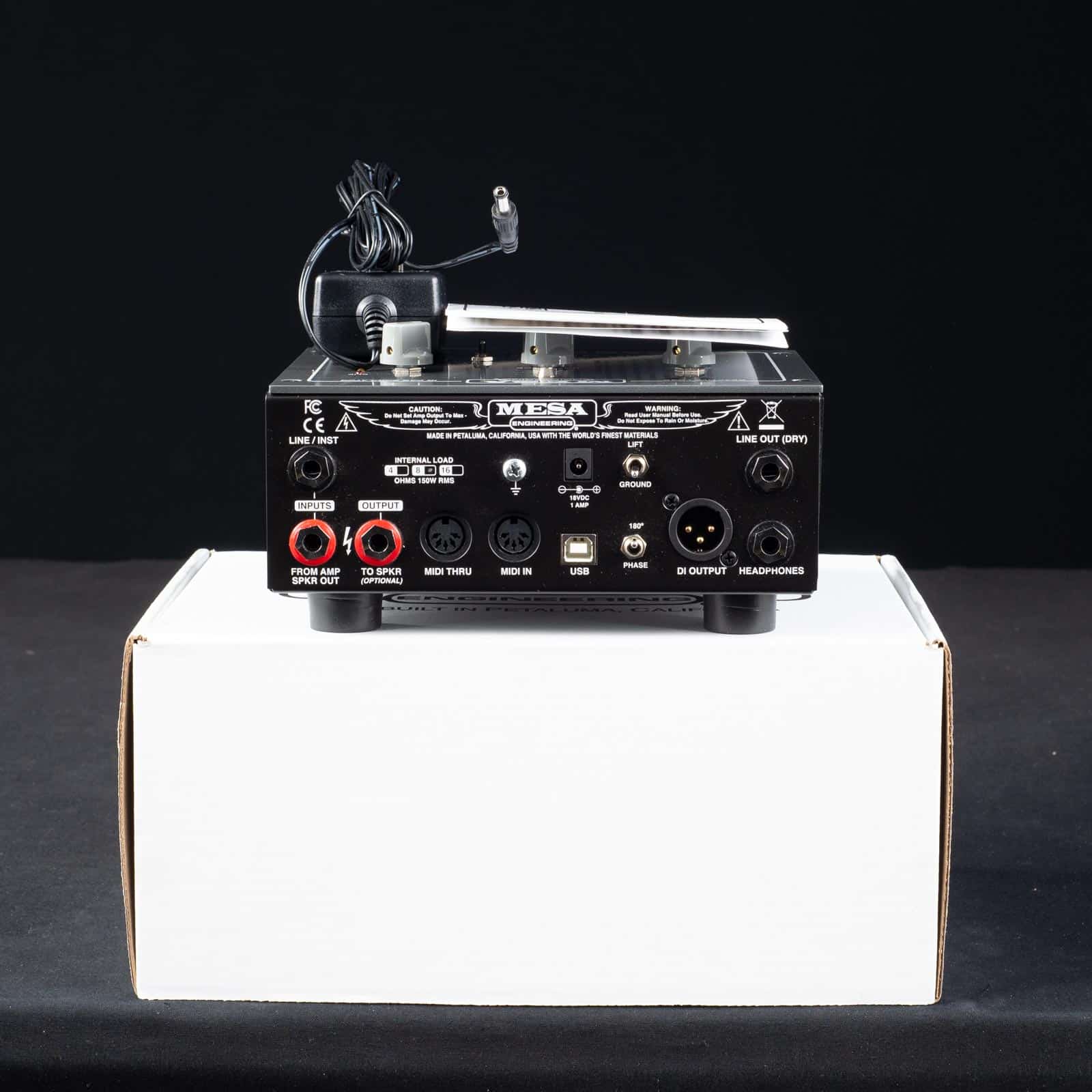

Two ¼” Input Jacks (From Amp Speaker Output & Line/Instrument In) |
|
One ¼” “TO SPKR” Live Speaker Cabinet Output Jack (defeats Internal Reactive Load when cable is connected) |
|
Variable Input Level Control with 3-Bar LED Input Signal Meter |
|
Variable Output Level Control |
|
IR Balanced XLR Direct Output (Controlled by the Variable Output Level Control) |
|
Independent ¼” +4 Line Level “Dry” Output Jack (Exact signal from amp’s speaker output, no IR applied and controlled by the Variable Input Level Control) |
|
Headphone Output Jack (Controlled by the Variable Output Level Control) |
|
Phase Switch – Normal (Phase) or Reverse (180°) |
|
Ground Lift Switch |
|
18 VDC Power Supply |
|
Tall Rubber Feet – Allows CabClone IR to sit on top of most amps, clearing the handle |
|
Dimensions: 4 3/6” H x 7 1/2″ W x 6 5/8″ D |
|
Weight: 3lbs. 4oz. |
