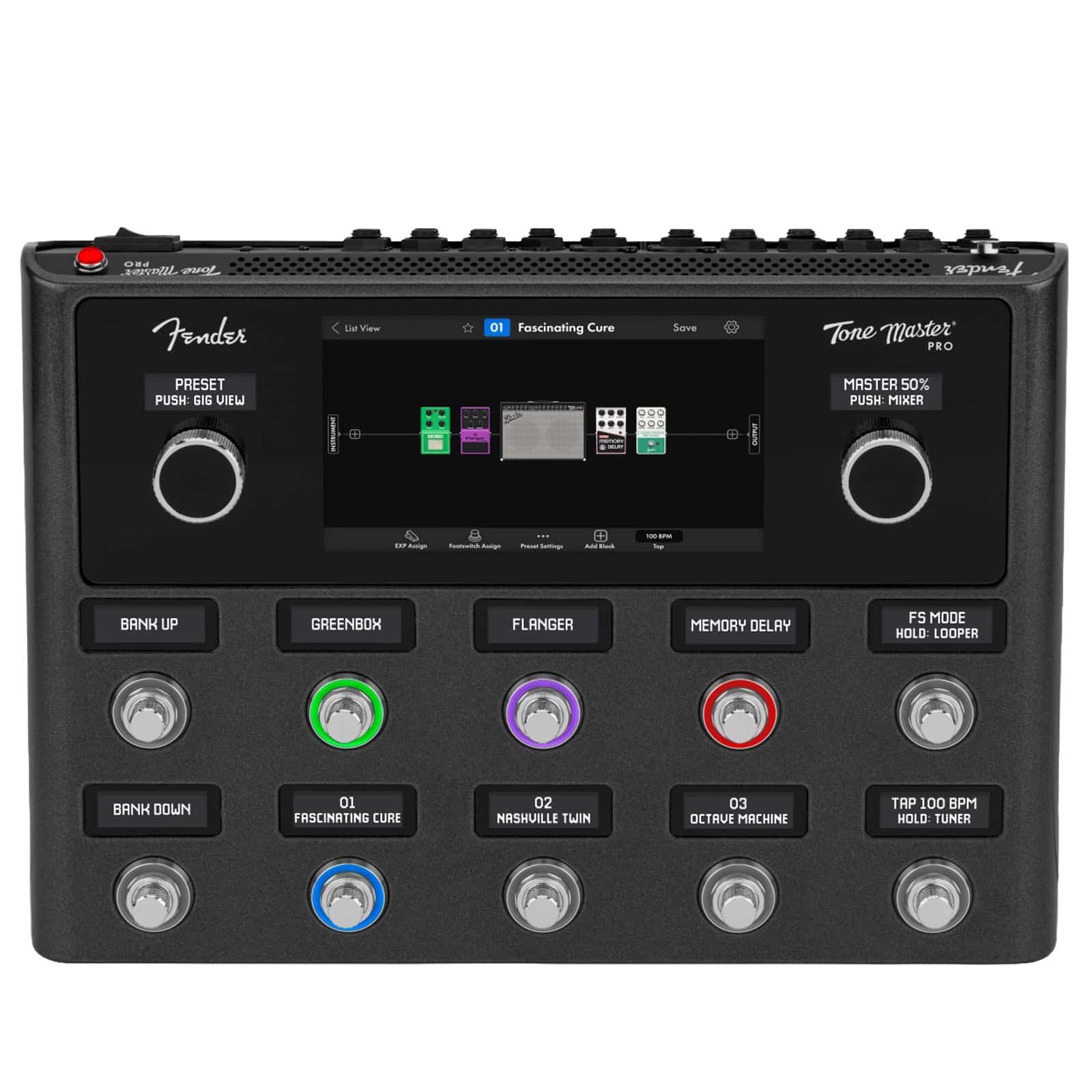

Tone master Pro
Tone Master Pro is the first no-compromise multi-effects guitar workstation that features the amazing sound quality that the Tone Master series is known for. Combining a powerfully intuitive interface and the most comprehensive I/O array available, the Tone Master Pro is the best sounding, most powerful and easiest to use guitar processor ever.
Tone Master Pro features over 100 of the world's most popular amps and effects, including all of the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other can't live without classics that have all been perfectly replicated using our proprietary Tone Master Modeling process. Tone Master Pro's lightweight, rugged, stage-friendly form factor is as beautiful as it is functional. With a full-color touchscreen, stunning graphics, and intuitive user interface, dialing in the perfect tone has never been easier or more inspired.
Create Presets, customize your footswitch assignments and combine them to create Songs and organize into Setlists with ease. Tone Master Pro's 10 custom-designed footswitch encoders make editing a breeze, giving you instant access to all your presets and parameters and make adjustments just like you would on the real thing. Connect to our Tone Master Pro Control app via USB for creating, editing and sharing your own presets or for auditioning and downloading thousands of tones created by Fender's community of players and artists.
-
Over 100 Tone Master quality Amp & Effect Models
-
Over 6000 Fender-captured Impulse Responses with a variety of cabinet and microphone options
-
3rd Party IR support
-
7" Color Touch-screen
-
Innovative Song & Setlist modes
-
60 second Stereo Looper
-
4 Effects Loops for integrating your favorite pedals
-
Instrument and XLR mic inputs
-
10 proprietary footswitch/encoders with LCD “scribble strips”
-
True preset spillover of delay and reverb tails for seamless preset changes
-
Firmware updates over USB
-
Compatible with Tone Master Pro Control desktop app for editing, sharing and downloading presets
-
Over 500 User Presets with access to thousands more from the Cloud using the Tone Master Pro Control App
-
Bluetooth wireless connection for streaming audio from a mobile device
-
Stereo 1/4" Headphone output jack for silent practice
-
Compatible with the Mission Engineering SP1-TMP Expression Pedal for realtime control of parameters
-
Lightweight, under 9 lbs.
|
SERIES: Tone Master® |
|
COLOR: Black |
|
COUNTRY OF ORIGIN: CN |
|
DIGITAL AUDIO BIT DEPTH: 32Bit |
|
AUXILIARY INPUT CONNECTION TYPE: 3.5 mm Stereo |
|
AUXILIARY INPUT IMPEDANCE: 10 kΩ |
|
INSTRUMENT INPUT CONNECTION TYPE: 1/4" |
|
INSTRUMENT INPUTS MAXIMUM LEVEL: 5.6V (2.8V with Input Pad Off) |
|
LINE INPUT CONNECTION TYPE: 1/4” TRS Female (Combo), Balanced |
|
LINE INPUTS IMPEDANCE: 1MΩ |
|
LINE INPUTS MAXIMUM LEVEL: 7.8V Balanced, 4.5V Unbalanced |
|
MICROPHONE INPUT CONNECTION TYPE: XLR Female (Combo), Balanced |
|
MICROPHONE PREAMP INPUT IMPEDANCE: 1.8 kΩ Balanced |
|
MICROPHONE PREAMP MAXIMUM INPUT LEVEL: 4.7V |
|
AUXILIARY INPUT MAX INPUT LEVEL: 2.4V |
|
EFFECTS LOOP IMPEDANCE: 10 kΩ |
|
MIDI IO: Dual 5-Pin DIN (In/Out-Through-Merge) |
|

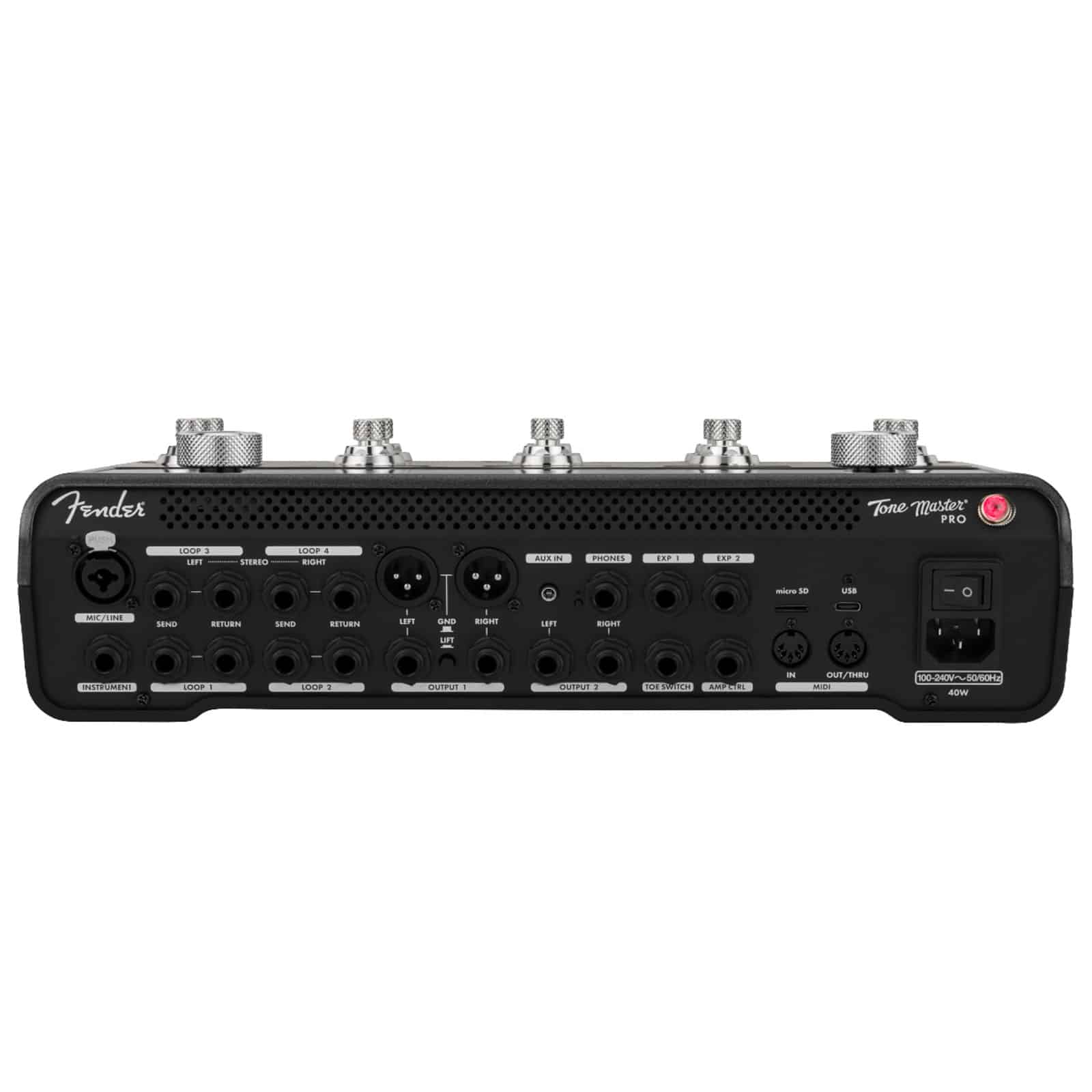

EFFECTS LOOP CONNECTION TYPE: Mono Loops (1 & 2) 1/4" Unbalanced, Mono Loops (3 & 4) 1/4" TRS Balanced (Can Be Combined into Stereo Pair) |
|
CONTROL PANEL: Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD "Scribble Strips" |
|
EFFECTS: Over 100 Quality Amp and Effect Models |
|
EFFECTS LOOP: 4 Total |
|
LOOPER: 60-Second Stereo Looper |
|
CONNECTIVITY: USB-C® |
|
CONNECTION TYPE: 1/4" |
|
OTHER CONNECTIONS: 1/4" Expression Pedal 1 and 2, Amp Control |
|
VOLTAGE: 120V |
|
POWER REQUIREMENTS: 40W |
|
PHANTOM POWER: +48 VDC (XLR Only) |
|
DIGITAL AUDIO FREQUENCY RESPONSE: 20 Hz - 20 kHz (+0.1/-0.7 dB) |
|
SUPPORTED SAMPLE RATES: 48 kHz Internal (Project Sync 44.1/48/88.2/96 kHz) |
|
PRODUCT DEPTH: 10.3" (26.16 cm) |
|
PRODUCT HEIGHT: 3.8" (96.4 mm) |
|
PRODUCT WIDTH: 14.6" (37.1 cm) |
