Katana-110 Bass Combo
Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-110 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, backed by a stage-ready, 60-watt class AB power amp, custom 10-inch woofer, and tweeter with on/off switch. And with comprehensive EQ, flexible connectivity, and more, the Katana-110 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.
|
Versatile combo bass amp with stage-ready sound and advanced features |
|
60-watt class AB power amp delivers big, punchy tone |
|
Rock-solid combo cabinet with custom 10-inch woofer and high-frequency tweeter with on/off switch |
|
Three selectable amp voicings cover a wide range of styles |
|
Shape switch with three tone characters: mid scoop, bright, and extended range |
|
Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects |
|
Comprehensive four-band EQ with selectable low and high-mid frequency controls |
|
Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity |
|
Six memories for storing and recalling favorite sound setups |
|
Power Control realizes cranked-amp volume in any playing situation |
|
Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows |
|
Download and share Livesets at BOSS Tone Exchange |
|
USB and phones/recording outputs with mic’d cabinet emulation |
|
Balanced XLR direct output with selectable direct, pre, or post signal |
|
Optional GA-FC footswitch for deep performance control |
|
Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor |
|
Rated Power Output: 60 W |
|
Nominal Input Level: |
|
INPUT: -10 dBu (1 M ohm) |
|
POWER AMP IN: -10 dBu (20 k ohms) |
|
AUX IN: -10 dBu (20 k ohms) |
|
RETURN IN: -10 dBu (100 k ohm) |
|
Speaker: |
|
25 cm (10 inches) x 1 |
|
TWEETER: x 1 |
|
Controls: |
|
POWER switch |
|
MASTER VOLUME knob |
|
POWER CONTROL switch (STANDBY, 1 W, MAX) |
|
TWEETER button |
|
[INPUT EFX] |
|
COMP button |
|
DRIVE button |
|
COMP knob |
|
DRIVE knob |
|
[AMPLIFIER] |
|
PAD button |
|
SHAPE button |
|
TYPE knob (VINTAGE, FLAT, MODERN) |
|
GAIN knob |
|
VOLUME knob |
|
[BLEND] |
|
BLEND button |
|
DRY LEVEL knob |
|
[EQUALIZER] |
|
LOW MID button |
|
HIGH MID button |
|
BASS knob |
|
LOW MID knob |
|
HIGH MID knob |
|
TREBLE knob |
|
[EFFECTS] |
|
FX1 button |
|
FX2 button |
|
TAP button |
|
FX1 knob |
|
FX2 knob |
|
[TONE SETTING] |
|
CH1 button |
|
CH2 button |
|
CH3 button |
|
PANEL button |
|
[BALANCED OUT] |
|
GND LIFT switch (OFF, ON) |
|
SELECT (POST, PRE, DIRECT) |
|
Indicators: |
|
COMP |
|
DRIVE |
|
PAD |
|
SHAPE |
|
BLEND |
|
LOW MID |
|
HIGH MID |
|
FX1 |
|
FX2 |
|
TAP |
|
CH1 |
|
CH2 |
|
CH3 |
|
PANEL |
|
TWEETER |
|

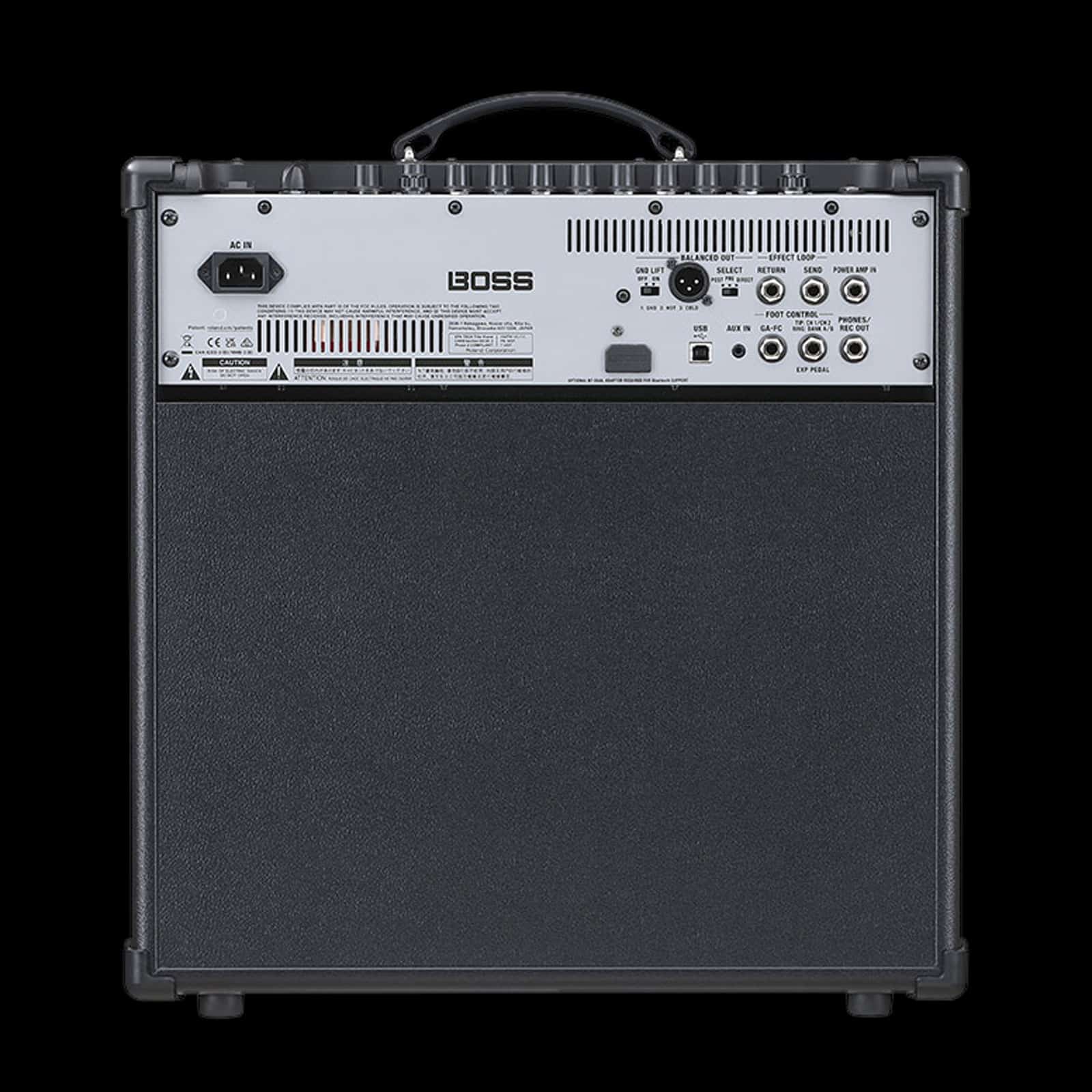

Connectors: |
|
INPUT jack: 1/4-inch phone type |
|
POWER AMP IN jack: 1/4-inch phone type |
|
BALANCED OUT jack: 1/4-inch phone type |
|
SEND jack: 1/4-inch phone type |
|
RETURN jack: 1/4-inch phone type |
|
REC OUT/PHONES jack: Stereo 1/4-inch phone type |
|
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type |
|
GA-FC jack: 1/4-inch TRS phone type |
|
AUX IN jack: Stereo miniature phone type |
|
USB port: USB B type |
|
BLUETOOTH ADAPTOR SLOT: Bluetooth‚ìá Audio MIDI Dual Adaptor |
|
AC IN jack |
|
Power Consumption: 77 W |
|
Accessories: |
|
Owner’s manual |
|
Power cord |
|
GA-FC sticker |
